SKU: EV-ULTRA3C6.0CAT5 Doncaster Cables

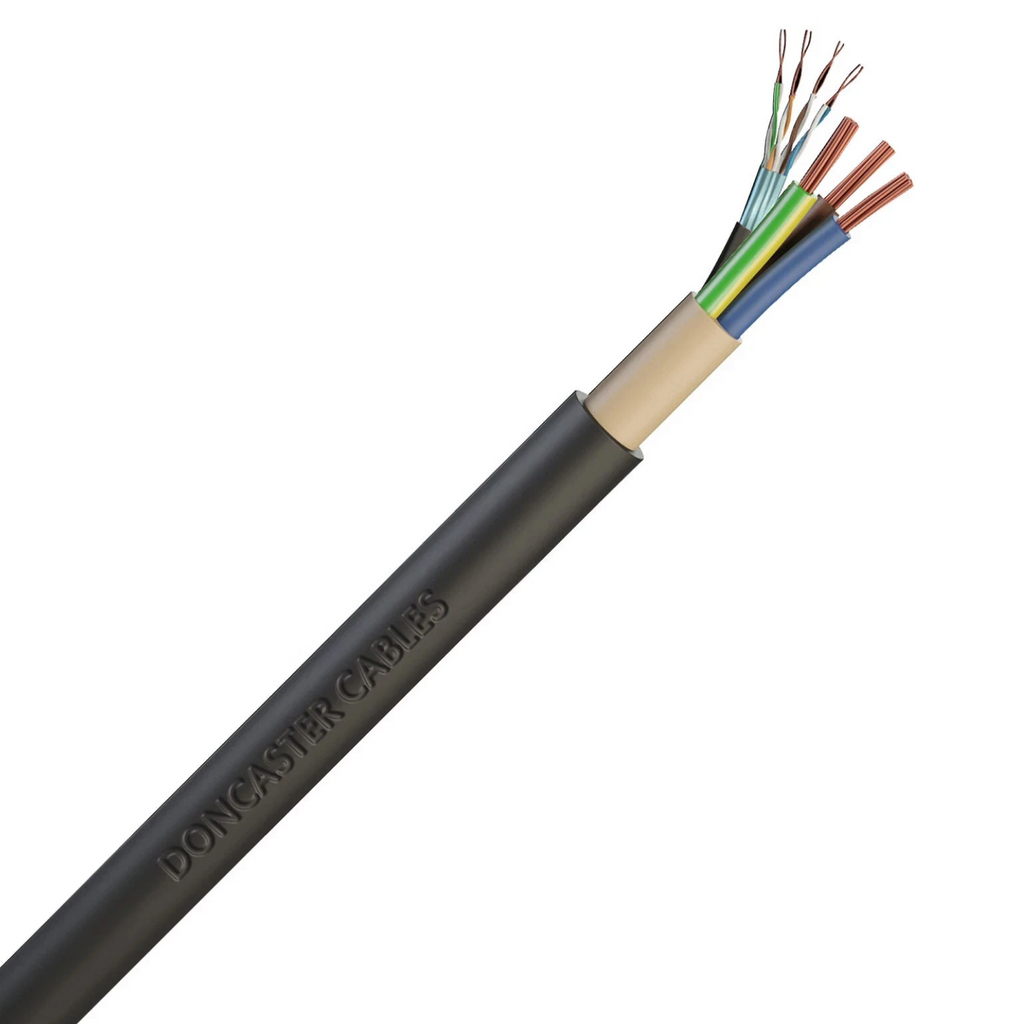

Doncaster Cables EV-ULTRA3C6.0CAT5 EV Cable – 6mm² 3 Core Power + Cat5e Data – Per Metre

Power + Cat5e data in one
3 x 6.0mm² copper cores
Foil-screened Cat5e FTP
Doncaster Cables EV-ULTRA3C6.0CAT5 EV Cable – 6mm² 3 Core Power + Cat5e Data – Per Metre
Roll over image to zoom in Click on image to zoom
Doncaster Cables EV-ULTRA3C6.0CAT5 EV Cable – 6mm² 3 Core Power + Cat5e Data – Per Metre
SKU: EV-ULTRA3C6.0CAT5 Doncaster Cables

Doncaster Cables EV-ULTRA3C6.0CAT5 EV Cable – 6mm² 3 Core Power + Cat5e Data – Per Metre

Power + Cat5e data in one
3 x 6.0mm² copper cores
Foil-screened Cat5e FTP
£9.00
£7.50 Exc VAT
Product Datasheet
Free delivery in 2–3 working days
In stock
Not sure which charger you need? Email the teamadam@echargersuk.co.uk
Delivery & Returns

Standard UK Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
Free

Next Working Day UK Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£9.50

Returns

No Longer Required
We’re happy to accept returns on unwanted items with a 25% restocking fee. Just make sure they’re in like-new condition, unused, and still in the original packaging, ready for resale. The buyer covers the return shipping, and returns should be made within 14 days of delivery. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need assistance, feel free to reach out to us at adam@echargersuk.co.uk.

Ordered Incorrectly
We completely understand that mistakes happen! If you’ve ordered the wrong product, we’re here to help. We’ll happily assist you with returning the item and finding something that better suits your needs. There’s just a 25% restocking fee, and we ask that the item be unused, in like-new condition, and still in its original packaging. Returns should be made within 14 days of delivery, with the buyer covering the return shipping. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need support, don’t hesitate to reach out to us at adam@echargersuk.co.uk. We’re here to help!

Damaged Products
We know it can be frustrating if your order arrives damaged! We’re here to make it right with a replacement or refund. Just let us know within 24 hours of delivery by emailing us at adam@echargersuk.co.uk. Please include clear photos of the damaged packaging and the item(s) so we can assist you as quickly as possible.

Faulty Products
We know it's not ideal if your product is faulty. Please reach out to us at adam@echargersuk.co.uk, and we’ll work with our manufacturers to identify and resolve the issue as quickly as possible. In many cases, it’s something simple like a wiring or connection problem that can be easily fixed. If we can’t resolve it, we’ll arrange for you to return the item, and we’ll send out a replacement as soon as we receive it. To help us assist you faster, please email us at adam@echargersuk.co.uk with your invoice number and details of the issue.

We’re sorry, but eChargers UK Ltd is unable to accept responsibility for any indirect or consequential losses.

About eChargers UK

We are a UK-based online shop that sells electric vehicle chargers. From 7kW home wallboxes to 22kW commercial chargers, we stock over 100 products from 15+ top brands. Every order comes with free UK delivery.

What We Do

We make buying an EV charger simple. Whether you are a homeowner looking for your first wallbox, a landlord getting a property ready, or an electrician sourcing chargers for clients, we have got you covered.

Our range includes tethered and untethered home chargers, commercial workplace units, portable chargers, charging cables, mounting posts, and accessories. We carry trusted brands like MyEnergi, Ohme, Easee, Pod Point, Andersen, Indra, and more.

Why Buy From Us

  • Competitive pricing across all major EV charger brands
  • Free standard UK delivery on every order (2 to 3 working days)
  • Next working day delivery available
  • All products are genuine, UK specification units
  • Dedicated customer support by phone and email

Who We Serve

We supply to both home customers and trade professionals.

For homeowners: We help you find the right charger for your vehicle, your home, and your budget. Many of the chargers we sell qualify for the OZEV grant, which can save you up to £350.

For installers and electricians: We offer reliable stock and fast dispatch to keep your installation schedule on track. Need multiple units? Get in touch and we will look after you.

Get in Touch

Got a question about which charger is right for you? We are here to help.

Email: adam@echargersuk.co.uk
Phone: 0330 043 8012
Monday to Friday, 9:00 AM to 5:00 PM

Product Details

Downloads

Doncaster Cables EV-Ultra Cat5e datasheet Download

Specifications

Product specifications
BrandDoncaster Cables
ModelEV-ULTRA3C6.0CAT5 (EV-Ultra Cat5e)
Power conductors3 x 6.0mm² plain annealed copper, Class 2 stranded 7/1.04mm to BS EN 60228
Data cableCat5e FTP, foil screened, 4 twisted pair
Maximum current rating58A
Voltage drop7.9mV/A/m
ConstructionXLPE Type GP8 insulation (BS 7655-1.3), PVC bedding, Tuff heat-resisting PVC sheath (DCC05/DCC07)
Overall diameter and weightApprox. 16.0mm, approx. 410kg/km (0.41kg per metre)
Operating temperature and bend radius-15°C to 90°C, minimum bending radius 8 x overall diameter
Sold byThe metre (quantity = metres required)

Summary

A UK-made EV charger supply cable combining three 6.0mm² copper power conductors with a foil-screened Cat5e data cable in one double-sheathed run, so a charge point gets power and a hard-wired data connection from a single cable. Maximum current rating 58A, voltage drop 7.9mV/A/m. Suitable for clipping direct, cable tray and ladder, embedding in concrete, or laying in the ground with suitable mechanical protection. Sold by the metre: set the quantity to the length you need.

See more specificationSee less specification

The Doncaster Cables EV-ULTRA3C6.0CAT5 is a UK-made supply cable for electric vehicle charge points that combines three 6.0mm² copper power conductors with a foil-screened Cat5e data cable in one double-sheathed run. It feeds the charger and gives it a hard-wired data connection with a single cable, rather than two separate runs.

Sold by the metre: set the quantity to the number of metres your run needs.

Running power and data together is the point of this cable. The power and data conductors are rated to the same nominal voltage, which is the condition in BS 7671 Regulation 528.1 that allows them to share one wiring system. The data element uses screened twisted pairs laid to reduce interference, and Doncaster recommends terminating the screen to earth.

Product Features

Power and Data in One Cable – Three 6.0mm² power cores and a Cat5e FTP data cable in a single run, so the charge point gets a wired connection without a second cable.

Foil-Screened Cat5e – Four twisted pairs with a foil screen for a hard-wired data link to the charger or an energy monitoring device.

58A Maximum Current Rating – 6.0mm² plain annealed copper Class 2 stranded conductors (7/1.04mm) to BS EN 60228, with a voltage drop of 7.9mV/A/m.

Double-Sheathed Construction – XLPE Type GP8 insulation to BS 7655-1.3, PVC bedding and a Tuff heat-resisting PVC outer sheath for extra protection.

Flexible Installation – Suitable for installing in air, clipped to a surface, on cable tray or ladder, and embedded in concrete. It can be laid direct in the ground where suitable mechanical protection is in place.

Wide Temperature Range – Rated from -15°C to 90°C operating temperature, with a minimum bending radius of 8 x overall diameter.

Quicker, Neater Installs – One cable to store, handle and route through walls and buildings, for a cleaner finished installation.

Made in the UK – Manufactured in Britain by Doncaster Cables.

Description

The Doncaster Cables EV-ULTRA3C6.0CAT5 is a UK-made supply cable for electric vehicle charge points that combines three 6.0mm² copper power conductors with a foil-screened Cat5e data cable in one double-sheathed run. It feeds the charger and gives it a hard-wired data connection with a single cable, rather than two separate runs.

Sold by the metre: set the quantity to the number of metres your run needs.

Running power and data together is the point of this cable. The power and data conductors are rated to the same nominal voltage, which is the condition in BS 7671 Regulation 528.1 that allows them to share one wiring system. The data element uses screened twisted pairs laid to reduce interference, and Doncaster recommends terminating the screen to earth.

Product Features

Power and Data in One Cable – Three 6.0mm² power cores and a Cat5e FTP data cable in a single run, so the charge point gets a wired connection without a second cable.

Foil-Screened Cat5e – Four twisted pairs with a foil screen for a hard-wired data link to the charger or an energy monitoring device.

58A Maximum Current Rating – 6.0mm² plain annealed copper Class 2 stranded conductors (7/1.04mm) to BS EN 60228, with a voltage drop of 7.9mV/A/m.

Double-Sheathed Construction – XLPE Type GP8 insulation to BS 7655-1.3, PVC bedding and a Tuff heat-resisting PVC outer sheath for extra protection.

Flexible Installation – Suitable for installing in air, clipped to a surface, on cable tray or ladder, and embedded in concrete. It can be laid direct in the ground where suitable mechanical protection is in place.

Wide Temperature Range – Rated from -15°C to 90°C operating temperature, with a minimum bending radius of 8 x overall diameter.

Quicker, Neater Installs – One cable to store, handle and route through walls and buildings, for a cleaner finished installation.

Made in the UK – Manufactured in Britain by Doncaster Cables.

Standard UK Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
Free

Next Working Day UK Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£9.50

Returns

No Longer Required
We’re happy to accept returns on unwanted items with a 25% restocking fee. Just make sure they’re in like-new condition, unused, and still in the original packaging, ready for resale. The buyer covers the return shipping, and returns should be made within 14 days of delivery. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need assistance, feel free to reach out to us at adam@echargersuk.co.uk.

Ordered Incorrectly
We completely understand that mistakes happen! If you’ve ordered the wrong product, we’re here to help. We’ll happily assist you with returning the item and finding something that better suits your needs. There’s just a 25% restocking fee, and we ask that the item be unused, in like-new condition, and still in its original packaging. Returns should be made within 14 days of delivery, with the buyer covering the return shipping. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need support, don’t hesitate to reach out to us at adam@echargersuk.co.uk. We’re here to help!

Damaged Products
We know it can be frustrating if your order arrives damaged! We’re here to make it right with a replacement or refund. Just let us know within 24 hours of delivery by emailing us at adam@echargersuk.co.uk. Please include clear photos of the damaged packaging and the item(s) so we can assist you as quickly as possible.

Faulty Products
We know it's not ideal if your product is faulty. Please reach out to us at adam@echargersuk.co.uk, and we’ll work with our manufacturers to identify and resolve the issue as quickly as possible. In many cases, it’s something simple like a wiring or connection problem that can be easily fixed. If we can’t resolve it, we’ll arrange for you to return the item, and we’ll send out a replacement as soon as we receive it. To help us assist you faster, please email us at adam@echargersuk.co.uk with your invoice number and details of the issue.

We’re sorry, but eChargers UK Ltd is unable to accept responsibility for any indirect or consequential losses.

We are a UK-based online shop that sells electric vehicle chargers. From 7kW home wallboxes to 22kW commercial chargers, we stock over 100 products from 15+ top brands. Every order comes with free UK delivery.

What We Do

We make buying an EV charger simple. Whether you are a homeowner looking for your first wallbox, a landlord getting a property ready, or an electrician sourcing chargers for clients, we have got you covered.

Our range includes tethered and untethered home chargers, commercial workplace units, portable chargers, charging cables, mounting posts, and accessories. We carry trusted brands like MyEnergi, Ohme, Easee, Pod Point, Andersen, Indra, and more.

Why Buy From Us

  • Competitive pricing across all major EV charger brands
  • Free standard UK delivery on every order (2 to 3 working days)
  • Next working day delivery available
  • All products are genuine, UK specification units
  • Dedicated customer support by phone and email

Who We Serve

We supply to both home customers and trade professionals.

For homeowners: We help you find the right charger for your vehicle, your home, and your budget. Many of the chargers we sell qualify for the OZEV grant, which can save you up to £350.

For installers and electricians: We offer reliable stock and fast dispatch to keep your installation schedule on track. Need multiple units? Get in touch and we will look after you.

Get in Touch

Got a question about which charger is right for you? We are here to help.

Email: adam@echargersuk.co.uk
Phone: 0330 043 8012
Monday to Friday, 9:00 AM to 5:00 PM
Is it safe to run power and data in the same cable?

Yes, in this cable. The power and data conductors are rated to the same nominal voltage, which is the condition in BS 7671 Regulation 528.1 that allows them to share one wiring system. The data pairs are screened and twisted to limit interference, and Doncaster recommends terminating the screen to earth.

How do I order the length I need?

Each unit is one metre. Set the quantity to the number of metres your run needs, for example a quantity of 15 for a 15 metre run.

Is 6mm² cable suitable for a 7kW home charger?

The manufacturer's maximum current rating is 58A, against the 32A drawn by a 7.4kW single-phase charger. The rating that applies on a real job depends on run length, installation method and grouping, so the installing electrician must confirm the size against BS 7671.

Can it be buried underground?

It can be laid direct in the ground only where suitable mechanical protection is in place. It is also rated for installation in air, clipped to a surface, on cable tray or ladder, and embedded in concrete.

What is the Cat5e data cable used for?

It gives the charge point a hard-wired data link, such as an Ethernet connection or a connection to an energy monitoring device, so the charger does not have to rely on Wi-Fi.

How thick is the cable and how tight can it bend?

The overall diameter is approximately 16.0mm and it weighs approximately 0.41kg per metre. The minimum bending radius is 8 x the overall diameter, roughly 128mm.
