SKU: GMS5EV40R GARO

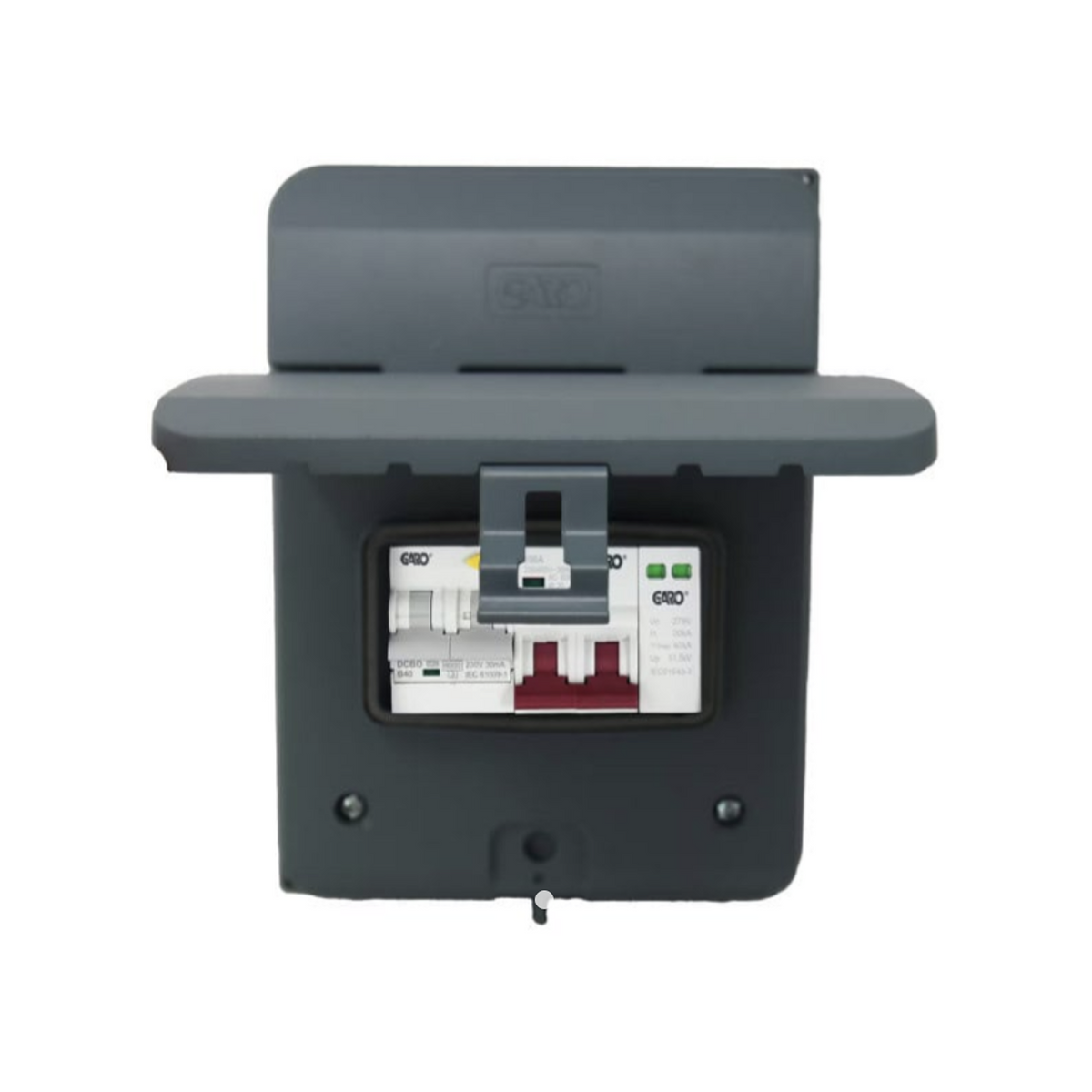

GARO GMS5EV40R EV Consumer Unit – 40A Bi-Directional RCBO – Type 2 SPD – 5 Way IP65

Bi-directional RCBO
40A 30mA protection
Type 2 surge protection
GARO GMS5EV40R EV Consumer Unit – 40A Bi-Directional RCBO – Type 2 SPD – 5 Way IP65
Roll over image to zoom in Click on image to zoom
GARO GMS5EV40R EV Consumer Unit – 40A Bi-Directional RCBO – Type 2 SPD – 5 Way IP65
SKU: GMS5EV40R GARO

GARO GMS5EV40R EV Consumer Unit – 40A Bi-Directional RCBO – Type 2 SPD – 5 Way IP65

Bi-directional RCBO
40A 30mA protection
Type 2 surge protection
£80.00
£66.67 Exc VAT
Free delivery in 2–3 working days
In stock
Not sure which charger you need? Email the teamadam@echargersuk.co.uk
Delivery & Returns

Standard UK Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
Free

Next Working Day UK Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£9.50

Returns

No Longer Required
We’re happy to accept returns on unwanted items with a 25% restocking fee. Just make sure they’re in like-new condition, unused, and still in the original packaging, ready for resale. The buyer covers the return shipping, and returns should be made within 14 days of delivery. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need assistance, feel free to reach out to us at adam@echargersuk.co.uk.

Ordered Incorrectly
We completely understand that mistakes happen! If you’ve ordered the wrong product, we’re here to help. We’ll happily assist you with returning the item and finding something that better suits your needs. There’s just a 25% restocking fee, and we ask that the item be unused, in like-new condition, and still in its original packaging. Returns should be made within 14 days of delivery, with the buyer covering the return shipping. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need support, don’t hesitate to reach out to us at adam@echargersuk.co.uk. We’re here to help!

Damaged Products
We know it can be frustrating if your order arrives damaged! We’re here to make it right with a replacement or refund. Just let us know within 24 hours of delivery by emailing us at adam@echargersuk.co.uk. Please include clear photos of the damaged packaging and the item(s) so we can assist you as quickly as possible.

Faulty Products
We know it's not ideal if your product is faulty. Please reach out to us at adam@echargersuk.co.uk, and we’ll work with our manufacturers to identify and resolve the issue as quickly as possible. In many cases, it’s something simple like a wiring or connection problem that can be easily fixed. If we can’t resolve it, we’ll arrange for you to return the item, and we’ll send out a replacement as soon as we receive it. To help us assist you faster, please email us at adam@echargersuk.co.uk with your invoice number and details of the issue.

We’re sorry, but eChargers UK Ltd is unable to accept responsibility for any indirect or consequential losses.

About eChargers UK

We are a UK-based online shop that sells electric vehicle chargers. From 7kW home wallboxes to 22kW commercial chargers, we stock over 100 products from 15+ top brands. Every order comes with free UK delivery.

What We Do

We make buying an EV charger simple. Whether you are a homeowner looking for your first wallbox, a landlord getting a property ready, or an electrician sourcing chargers for clients, we have got you covered.

Our range includes tethered and untethered home chargers, commercial workplace units, portable chargers, charging cables, mounting posts, and accessories. We carry trusted brands like MyEnergi, Ohme, Easee, Pod Point, Andersen, Indra, and more.

Why Buy From Us

  • Competitive pricing across all major EV charger brands
  • Free standard UK delivery on every order (2 to 3 working days)
  • Next working day delivery available
  • All products are genuine, UK specification units
  • Dedicated customer support by phone and email

Who We Serve

We supply to both home customers and trade professionals.

For homeowners: We help you find the right charger for your vehicle, your home, and your budget. Many of the chargers we sell qualify for the OZEV grant, which can save you up to £350.

For installers and electricians: We offer reliable stock and fast dispatch to keep your installation schedule on track. Need multiple units? Get in touch and we will look after you.

Get in Touch

Got a question about which charger is right for you? We are here to help.

Email: adam@echargersuk.co.uk
Phone: 0330 043 8012
Monday to Friday, 9:00 AM to 5:00 PM

Product Details

Specifications

Product specifications
BrandGARO
ModelGMS5EV40R
Protective device40A 30mA bi-directional RCBO
Surge protectionType 2 SPD
Main device100A double-pole isolator
Degree of protectionIP65, suitable for outdoor mounting
Ways5 way, 0 free ways
Enclosure240 x 165 x 98mm (H x W x D), 35mm terminals
Electrical rating100A rated current, 230V AC, 50/60Hz, 16kA conditional short circuit (Annex ZB at 250V)
StandardsEN 61439-3, compliant with BS 7671. Maximum backup protection 100A

Summary

A 5-way EV charger supply unit with a 40A 30mA bi-directional RCBO, a 100A double-pole isolator and a Type 2 SPD in an IP65 enclosure. Bi-directional protection matters where current can flow both ways rather than only from the grid to the car, which is the case once solar PV, battery storage or an exporting vehicle is part of the installation. The sealed enclosure allows outdoor mounting beside the charger.

See more specificationSee less specification

The GARO GMS5EV40R is a ready-assembled consumer unit for dedicated electric vehicle charging circuits on installations where energy can flow in both directions. It combines a 40A 30mA bi-directional RCBO, a 100A double-pole isolator and a Type 2 surge protection device in a 5-way IP65 enclosure.

Bi-directional protection is the point of this unit. A conventional protective device assumes energy travels one way, from the supply towards the load. A bi-directional RCBO is designed to operate correctly with current flowing in either direction, which is what happens once solar PV, battery storage or a vehicle capable of exporting energy forms part of the installation.

Product Features

40A 30mA Bi-Directional RCBO – Dedicated protection for the EV charging circuit that operates correctly with current flowing in either direction.

Type 2 Surge Protection Device – Built into the unit to divert transient overvoltages away from the charger and connected equipment.

100A Double-Pole Isolator – Main switch incomer rated 100A for dependable isolation of the unit.

IP65 Weatherproof Enclosure – Sealed against dust and low pressure water jets, so the unit can be mounted outdoors next to the charger.

Compact 5 Way Assembly – Measuring 240 x 165 x 98mm (H x W x D), supplied fully populated with no free ways.

35mm Terminals – Generous terminal capacity, with maximum backup protection of 100A.

16kA Conditional Short Circuit Rating – Rated to Annex ZB, 16kA rms at 250V, at 230V AC and 50/60Hz.

Wide Operating Range – Rated for ambient temperatures from -25°C to +55°C.

EN 61439-3 Manufactured – Built to EN 61439-3 for installations complying with BS 7671.

Description

The GARO GMS5EV40R is a ready-assembled consumer unit for dedicated electric vehicle charging circuits on installations where energy can flow in both directions. It combines a 40A 30mA bi-directional RCBO, a 100A double-pole isolator and a Type 2 surge protection device in a 5-way IP65 enclosure.

Bi-directional protection is the point of this unit. A conventional protective device assumes energy travels one way, from the supply towards the load. A bi-directional RCBO is designed to operate correctly with current flowing in either direction, which is what happens once solar PV, battery storage or a vehicle capable of exporting energy forms part of the installation.

Product Features

40A 30mA Bi-Directional RCBO – Dedicated protection for the EV charging circuit that operates correctly with current flowing in either direction.

Type 2 Surge Protection Device – Built into the unit to divert transient overvoltages away from the charger and connected equipment.

100A Double-Pole Isolator – Main switch incomer rated 100A for dependable isolation of the unit.

IP65 Weatherproof Enclosure – Sealed against dust and low pressure water jets, so the unit can be mounted outdoors next to the charger.

Compact 5 Way Assembly – Measuring 240 x 165 x 98mm (H x W x D), supplied fully populated with no free ways.

35mm Terminals – Generous terminal capacity, with maximum backup protection of 100A.

16kA Conditional Short Circuit Rating – Rated to Annex ZB, 16kA rms at 250V, at 230V AC and 50/60Hz.

Wide Operating Range – Rated for ambient temperatures from -25°C to +55°C.

EN 61439-3 Manufactured – Built to EN 61439-3 for installations complying with BS 7671.

Standard UK Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
Free

Next Working Day UK Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£9.50

Returns

No Longer Required
We’re happy to accept returns on unwanted items with a 25% restocking fee. Just make sure they’re in like-new condition, unused, and still in the original packaging, ready for resale. The buyer covers the return shipping, and returns should be made within 14 days of delivery. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need assistance, feel free to reach out to us at adam@echargersuk.co.uk.

Ordered Incorrectly
We completely understand that mistakes happen! If you’ve ordered the wrong product, we’re here to help. We’ll happily assist you with returning the item and finding something that better suits your needs. There’s just a 25% restocking fee, and we ask that the item be unused, in like-new condition, and still in its original packaging. Returns should be made within 14 days of delivery, with the buyer covering the return shipping. Please note that some specially imported or custom-made items can’t be returned. If you have any questions or need support, don’t hesitate to reach out to us at adam@echargersuk.co.uk. We’re here to help!

Damaged Products
We know it can be frustrating if your order arrives damaged! We’re here to make it right with a replacement or refund. Just let us know within 24 hours of delivery by emailing us at adam@echargersuk.co.uk. Please include clear photos of the damaged packaging and the item(s) so we can assist you as quickly as possible.

Faulty Products
We know it's not ideal if your product is faulty. Please reach out to us at adam@echargersuk.co.uk, and we’ll work with our manufacturers to identify and resolve the issue as quickly as possible. In many cases, it’s something simple like a wiring or connection problem that can be easily fixed. If we can’t resolve it, we’ll arrange for you to return the item, and we’ll send out a replacement as soon as we receive it. To help us assist you faster, please email us at adam@echargersuk.co.uk with your invoice number and details of the issue.

We’re sorry, but eChargers UK Ltd is unable to accept responsibility for any indirect or consequential losses.

We are a UK-based online shop that sells electric vehicle chargers. From 7kW home wallboxes to 22kW commercial chargers, we stock over 100 products from 15+ top brands. Every order comes with free UK delivery.

What We Do

We make buying an EV charger simple. Whether you are a homeowner looking for your first wallbox, a landlord getting a property ready, or an electrician sourcing chargers for clients, we have got you covered.

Our range includes tethered and untethered home chargers, commercial workplace units, portable chargers, charging cables, mounting posts, and accessories. We carry trusted brands like MyEnergi, Ohme, Easee, Pod Point, Andersen, Indra, and more.

Why Buy From Us

  • Competitive pricing across all major EV charger brands
  • Free standard UK delivery on every order (2 to 3 working days)
  • Next working day delivery available
  • All products are genuine, UK specification units
  • Dedicated customer support by phone and email

Who We Serve

We supply to both home customers and trade professionals.

For homeowners: We help you find the right charger for your vehicle, your home, and your budget. Many of the chargers we sell qualify for the OZEV grant, which can save you up to £350.

For installers and electricians: We offer reliable stock and fast dispatch to keep your installation schedule on track. Need multiple units? Get in touch and we will look after you.

Get in Touch

Got a question about which charger is right for you? We are here to help.

Email: adam@echargersuk.co.uk
Phone: 0330 043 8012
Monday to Friday, 9:00 AM to 5:00 PM
What does bi-directional actually mean here?

A conventional protective device assumes energy travels one way, from the supply towards the load. A bi-directional RCBO is designed to operate correctly with current flowing in either direction, which is what happens once solar PV, battery storage or a vehicle capable of exporting energy is part of the installation.

Is this the right unit for a V2G or vehicle-to-home setup?

Bi-directional protection is the reason such a device is chosen. Whether it suits a specific V2G charger is a question for the charger manufacturer and the electrician designing the installation to BS 7671.

Can it be mounted outdoors?

Yes. The IP65 enclosure is sealed against dust and low pressure water jets, so the unit can be fitted outside next to the charger.

Does this unit include PME fault detection?

No. PME (open-PEN) fault detection is fitted to the GS8EV40PME, GCS8EV40PME and G6EV40PME in this range, not to the GMS5EV40R. Where open-PEN protection is needed on a TN-C-S supply and is not provided by the charger itself, choose one of those units or check the charger specification.

Do I still need a separate surge protector for this circuit?

No. A Type 2 SPD is built into the unit to divert transient overvoltages away from the charger and connected equipment.

What is the 100A isolator for?

It is the main switch incomer for the unit, giving a single point of isolation for the assembly. Maximum backup protection is 100A and the terminals accept up to 35mm conductors.
